Colorimeters / PH Meters |
|
DIGITAL PHOTO COLORIMETER
- Highly Stable & accurate ideal clinical instruments for blood & chemical analysis
- Direct concentration facility, No calculation required
- 2½ Digital LED display for optical density
SALIENT FEATURES :-
- Range 400 to 700nm
- 1ml Sample Volume
- standard Glass Filters
| TECHNICAL SPECIFICATIONS |
| MODEL |
5 & 8 FILTER DIGITAL ME 953 C - ME 954 C |
| Range |
400 nm to 700 nm |
| Filters |
Standard glass Filters |
| Min. Volume |
1 ml. |
| Accuracy |
- 0.02 O.D. |
| Reproducibility |
- 0.01 O.D. |
| Output |
Optical Density 0 to 1.99 |
| Display |
2% Digit LED Display |
| Detector |
Selenium Photo Cell |
| Light Source |
6.2 V 0.3 Amp. Tungston Filament Lamp |
| Power |
230 v - 10% 50 Hz Ac |
| Size (LxBxH) |
305x305x165mm |
| Weight |
4 Kgm. (Approx.) |
|
|
|
| |
|

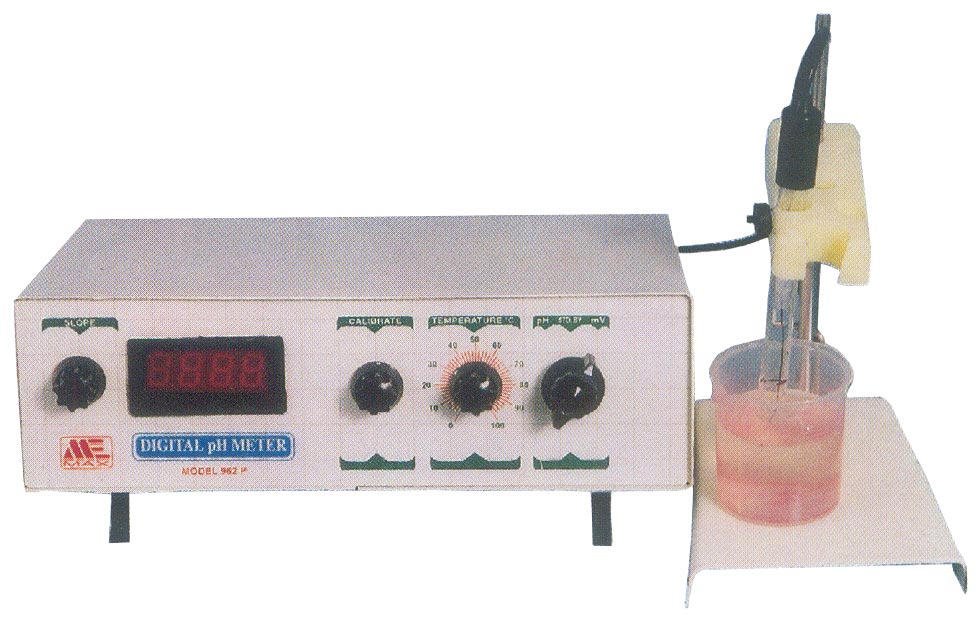

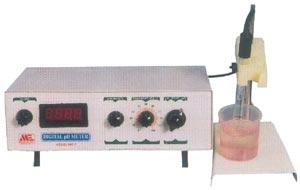

Digital pH Meters
- An Economical, Accurate, Reliable, Rugged and Stable Instruments for Laboratory & Field use.
- Measures pH & mV 3½ Digit LED Display
- Auto polarity & decimal indication
- auto temperature compensation
APPLICATIONS:
- Hospital & university laboratories
- Agriculture & medical institute
- Research laboratory of soil & water
- Chemical & pharmaceutical labs
- Fisheries & swimming pools
- Paint, petrol & fertilizer industries
| TECHNICAL SPECIFICATIONS:- |
| MODEL |
FT 963 P |
| Range |
pH |
0 to 14pH |
| |
mV |
0 to -1999 mV |
| Display |
3% digit LCD |
| Accuracy |
pH |
-0.01 pH-1 digit |
| |
mV |
- 1 mV -1 digit |
| Resolution |
0.01 pH, 1mv |
| Temperature Compensation |
Automatic & Manual 0° to 100 °C |
| Slope Correction |
80% to 120% |
| Input resistance |
10¹² ohms |
| Ambient Temp. |
0°C to 50°C |
| Recorder Output |
0 to 100 mV/pH |
| Power |
230V - 10%, 50 Hz AC |
| Size (LxBxH) |
275 x 175 x 85mm. |
| Weight (Approx.) |
2kg. approx |
| Standard Accessories |
Glass Electrode, Electrode Stand Dust covers, Buffer Solutions, Temp. Prob & Manual. |
|
|
|
| |
| |
| |
|
